NeoLIVE R2 Plus

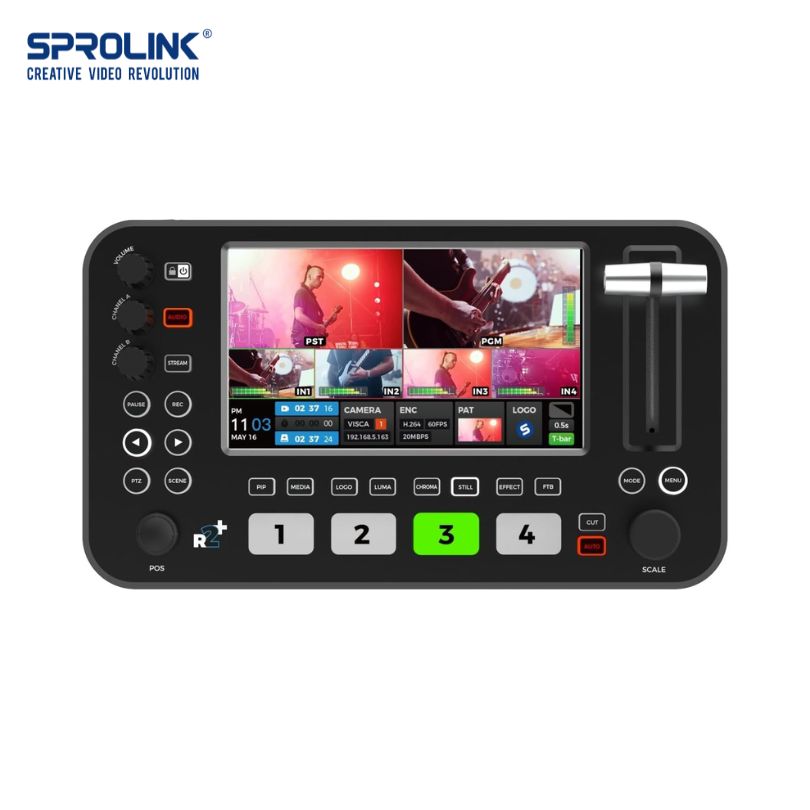

Sprolink NeoLIVE R2 Plus – Professional Multicam Live-Streaming Video Switcher & Mixer

The NeoLIVE R2 Plus is an all‑in‑one hardware live video switcher, audio mixer, PTZ controller, streamer, and recorder—designed for professional multi-camera productions such as church services, e‑commerce broadcasts, e‑sports, corporate webinars, and more.

Core Features & Specs

• 4 × HDMI Inputs – Supports independent HD sources (cameras, consoles, PCs) with automatic sync across resolutions.
• 2 × HDMI Outputs (PGM) – Dual program outputs enable simultaneous monitoring and preview.
• 5.5″ 1080p LCD – Bright built-in screen for multiview monitoring and intuitive control.
• PTZ Joystick Control – Built-in joystick enables real‑time pan/tilt/zoom control of connected PTZ cameras (via IP or serial).
• Hardware RTMP Streaming – Built‑in Ethernet stream engine with RTMP support for TikTok, YouTube, Facebook, etc.; streamable via LAN or mobile web UI.
• USB‑C (USB 3.0) Interface – Feeds 1080p60 lossless video + audio as a webcam via USB‑C, compatible with OBS, vMix, PotPlayer, and more.
• Local Recording – Supports MP4 recording directly to USB flash drives or HDDs at up to 60 fps.
• Audio Mixer – 2 × 3.5 mm mic/line inputs, headphone monitoring, AFV/MIX modes, and full audio control.
• Chroma-Key & Effects – Advanced virtual chroma key with edge‑blending; includes transition effects: CUT, FADE, WIPE, DIP, DVE, and T‑Bar control.
• Media & Graphics Support – Load PNG/JPG logos and stills via USB for on‑screen graphics.
• Low Latency – Video latency under 3 frames; audio latency configurable up to 2000 ms.
• Power & Dimensions – 12 V/1.5 A input (~18 W power); compact form factor with integrated power switch and button lock.
• Web UI Control – Configure stream settings, PTZ, chroma parameters, overlays, etc., via built‑in browser server.

Included Accessories

• NeoLIVE R2 Plus unit
• 12 V power adapter
• USB‑C to USB 3.0 connection cable
• Quick‑start manua
