The FI-P4X8 is a self-contained, fully programmable, Digital Loudspeaker Management System capable of handling full control of loudspeaker system.
The four inputs and eight outputs can be routed in multiple configurations to meet any system requirement.
Full system setup and configuration can be done in real time from the front panel or with the intuitive PC based graphic user interface software via the on-board RS485 and USB ports.

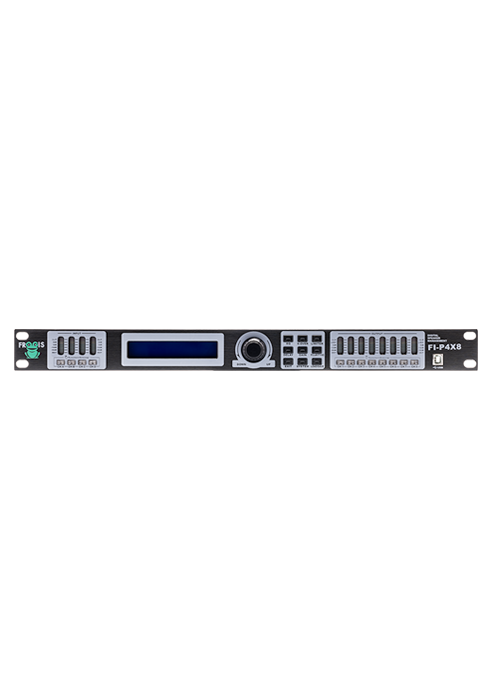

Packaged into a neat 1U rack design, an intuitive and concise front panel with LCD screen enables engineers to make essential adjustments to the speaker configuration with accuracy.
Features
96KHz sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A
USB and RS485 connectors are present for PC connection. 250 units can be connected together via Rs485 and it can be controlled remotely as far as 1500 meters
30 user-program parameters can be stored into the device
Safety/security lock buttons provide peace of mind again unwanted changes from unauthorized users or unwanted set-up changes
6 independent parametric EQ of input and output. The gain range is 120dB. The EQ of output channel has two slopes: Lo-shelf and Hi-shelf
Every input and output has compensation-delay, phase control and mute settings, delay function offer a maximum of 1000ms
Adjustable gain & limiter of output channel; Just choose the input signal and copy all the parameters from one channel to another channel with joint debugging
