Dolomite

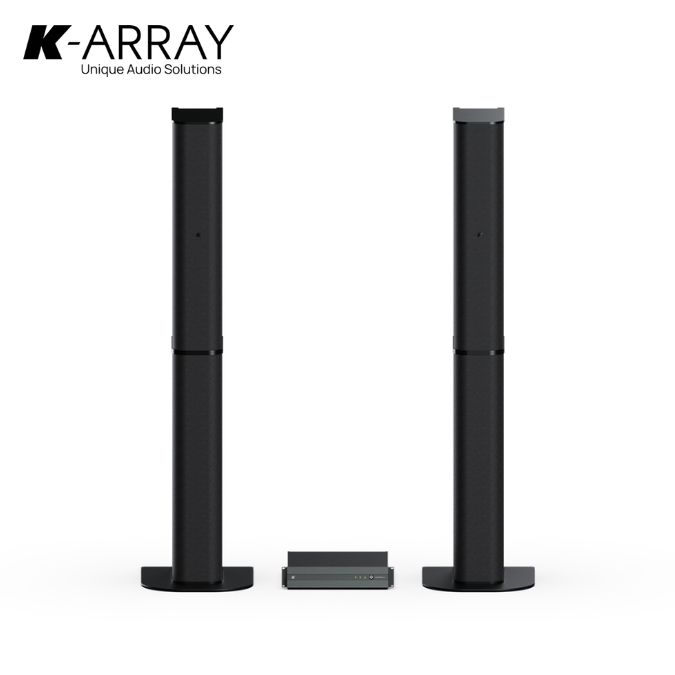

The Dolomite KRD202P is K‑array’s flagship full-range tower loudspeaker, debuting at ISE 2025. It combines high-performance audio with a sleek and modular design, ideal for situations where aesthetics meet audiophile-quality sound.

Key Features & Specifications

Drivers & Audio Architecture

• High-Frequency Array: Modular 1 m tower contains 16 × 2″ neodymium drivers (32 in stereo setup), utilizing K‑array’s Pure Array Technology (PAT) for smooth linear coverage.
• Sub Bass: 2 × built-in 10″ neodymium subwoofers per module, supported by 2 × 10″ passive radiators (4 subwoofers & 4 passive radiators per stereo tower).

Performance

• Frequency Range: 41 Hz – 18 kHz (-6 dB).
• Maximum SPL: 127 dB peak (half-space).
• Amplification Requirements: Bi-amplified system — 400 W × 2 (mid-high) + 1,600 W low-frequency.

Coverage & Power Handling

• Dispersion Pattern: Vertical 7°, Horizontal 120° coverage.
• Nominal Impedance: 4 Ω (each section), bi-amplified.

Physical & Mechanical Details

• Dimensions: 220 × 1,000 × 360 mm (8.7″ × 39.4″ × 14.2″) per module.
• Weight: ~76 kg for full stereo modules (plus base).
• Material & Finish: Stainless steel housing with acoustically transparent fabric; available in black or custom RAL finishes.
• Ingress Protection: IP64 standard; IP65-compliant with optional K-IP65KITB accessory.

Connectivity

• Signal Connectors: Two SpeakON NL4 connectors (1+/1− for input, 2+/2− for link-through.
• Kit Contents: Stereo package includes left/right towers, ground-stacking base, and KA104LIVE amplifier.
